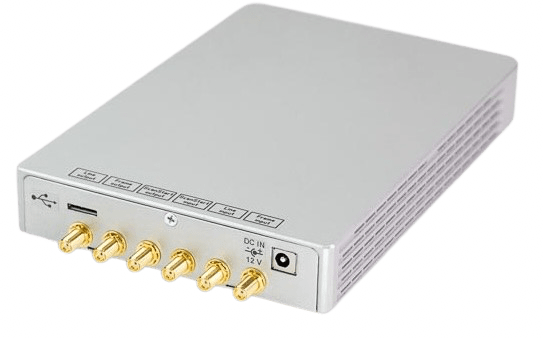

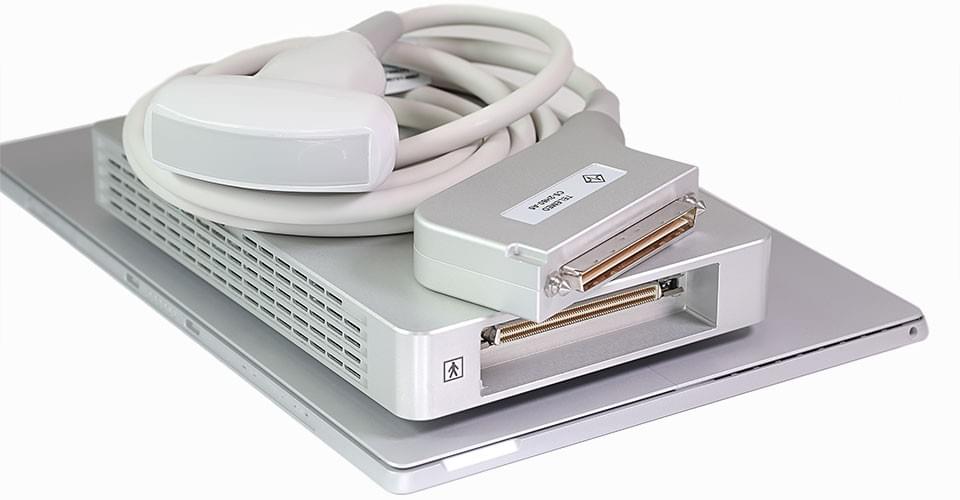

The World's Smallest Research Ultrasound Platform
Portable and compact for maximum flexibility in research environments.
Approved for Clinical Data Collection
Certified with TFDA and FDA medical device licenses for compliant clinical use.

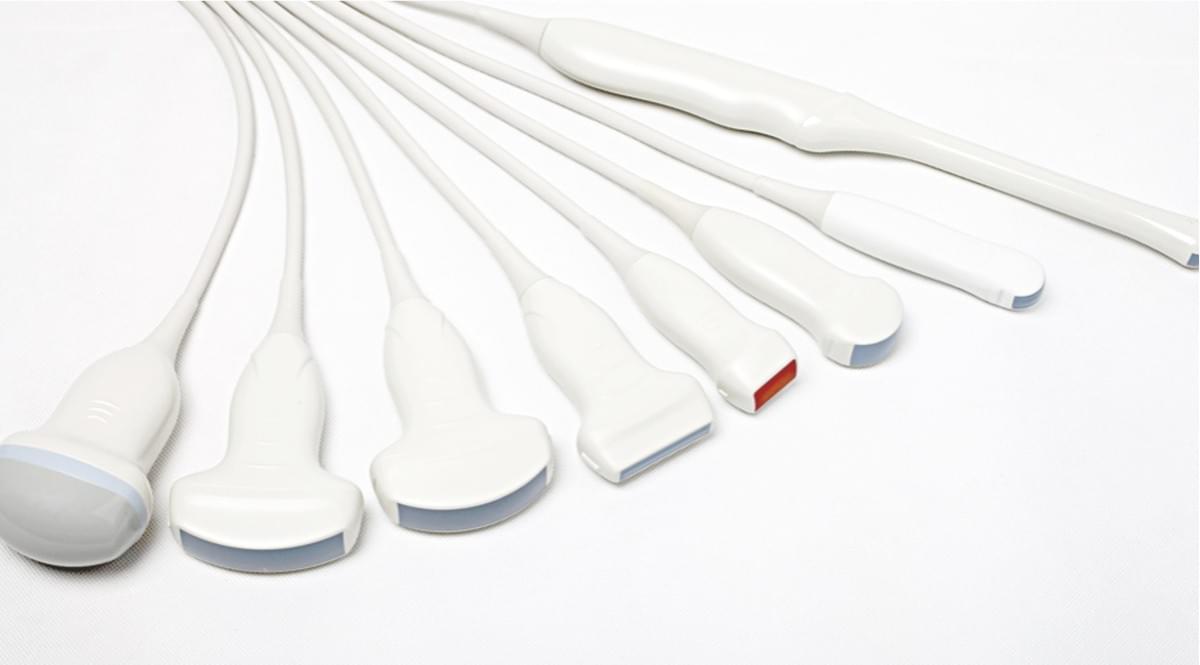

Comprehensive Probe Solutions
Linear | Musculoskeletal | Convex | Phased Array | Endocavity

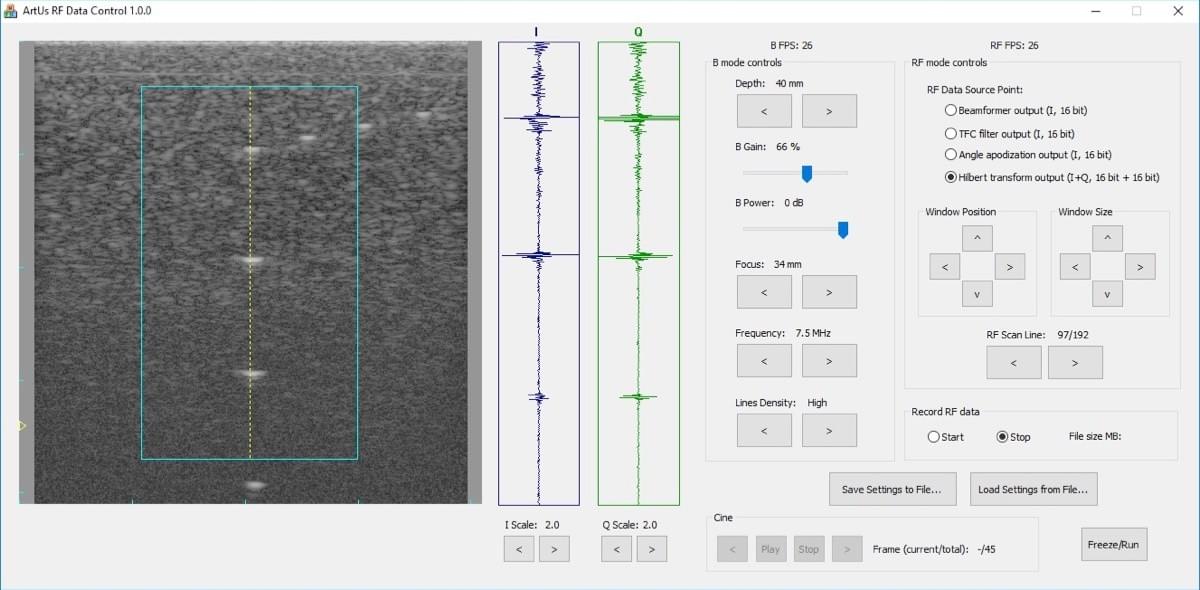

RF Data Capture
Supports three distinct RF data formats for in-depth signal analysis.
Timing Control
Offers support for both internal and external trigger timing control.
Full SDK Support
C#/C++/Python/Matlab/LabView
Supported Probes
Linear | Musculoskeletal | Convex | Phased Array | Endocavity

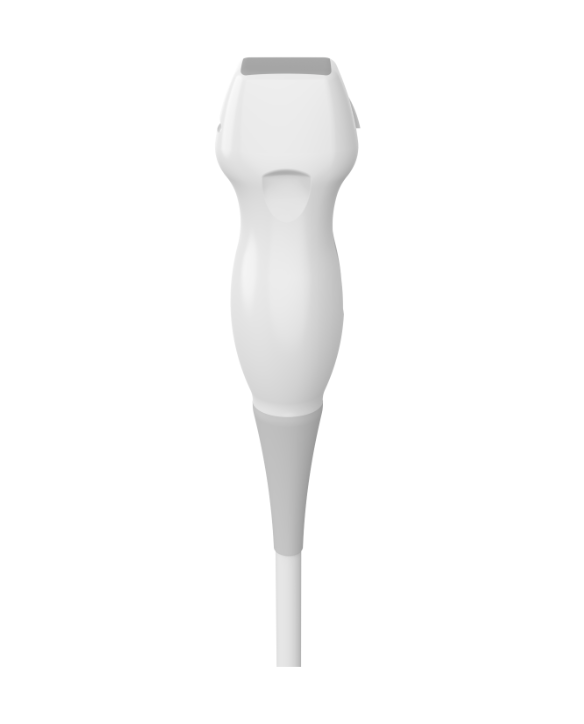

L18-7H40-A5
Type: Linear
Frequency: 7.0 - 18.0 MHz
Field of View:38.4 mm
Applications: Vascular, Small Parts, Musculoskeletal/Nerve
L15-7H40-A5
Type:Linear
Frequency: 7.0 - 15.0 MHz
Field of View:38.4 mm
Element Number: 192
Applications: Vascular, Small Parts, Musculoskeletal/Nerve
L12-5N40-A4
Type: Linear
Frequency: 5.0 - 12.0 MHz
Field of View:38.4 mm
Element Number: 128
Applications: Vascular, Small Parts, Musculoskeletal/Nerve

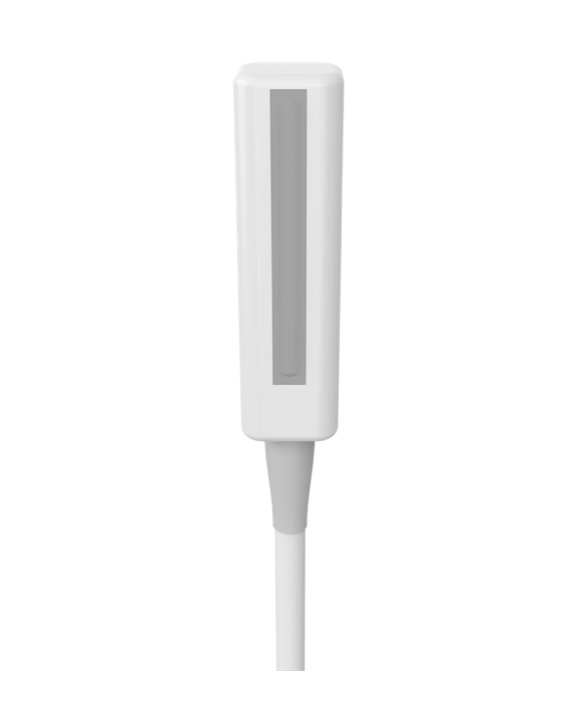

LF9-5N60-A3
Type: Linear
Frequency: 5.0 - 9.0 MHz
Field of View: 64 mm
Element Number: 128
Application: Musculoskeletal/Nerve
C5-2H60-A5
Type: Convex
Frequency: 2.0 - 5.0 MHz
Field of View: 60.5°
Element Number: 192
Applications: Abdomen, Gynecology, Obstetrics, Pediatrics
P5-1S15-A6
Type: Phased Array
Frequency: 1.0 - 6.0 MHz
Field of View: 90°
Element Number: 64
Applications: Abdomen, Heart

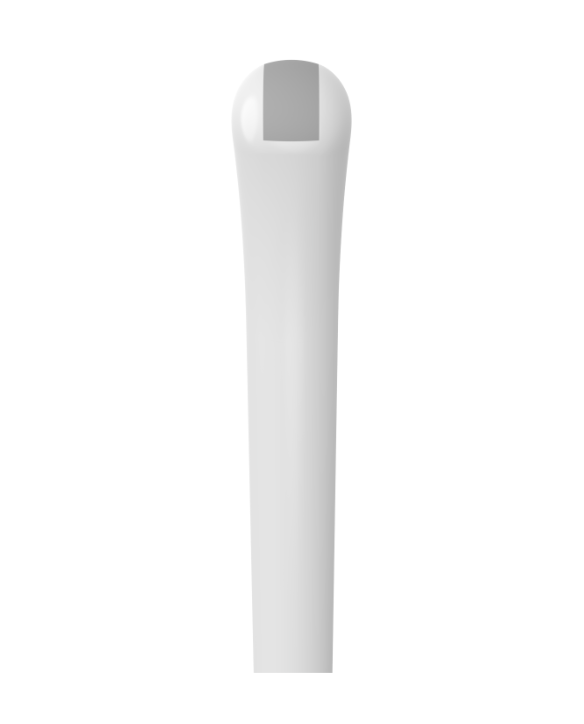

MCV-5N10-A3
Type: Endocavity
Frequency: 5.0 - 9.0 MHz
Field of View: 151°
Element Number: 64
Applications: Obstetrics and Gynecology (OB/GYN), Urology
